Introduction

We are going to fit spatial models to the gorilla data, using factor and continuous explanatory variables in this practical. We will fit one using the factor variable vegetation, the other using the continuous covariate elevation

(Jump to the bottom of the practical if you want to start gently with a 1D example!)

Get the data

data(gorillas_sf, package = "inlabru")

This dataset is a list (see help(gorillas_sf) for details. Extract the objects you need from the list, for convenience:

nests <- gorillas_sf$nests
mesh <- gorillas_sf$mesh
boundary <- gorillas_sf$boundary
gcov <- gorillas_sf_gcov()

Factor covariates

Look at the vegetation type, nests and boundary:

ggplot() +
  gg(gcov$vegetation) +
  gg(boundary, alpha = 0.2) +
  gg(nests, color = "white", cex = 0.5)

Or, with the mesh:

ggplot() +
  gg(gcov$vegetation) +
  gg(mesh) +
  gg(boundary, alpha = 0.2) +
  gg(nests, color = "white", cex = 0.5)

A model with vegetation type only

It seems that vegetation type might be a good predictor because nearly all the nests fall in vegetation type Primary. So we construct a model with vegetation type as a fixed effect. To do this, we need to tell ‘lgcp’ how to find the vegetation type at any point in space, and we do this by creating model components with a fixed effect that we call vegetation (we could call it anything), as follows:

comp1 <- geometry ~ vegetation(gcov$vegetation, model = "factor_full") - 1

Notes: * We need to tell ‘lgcp’ that this is a factor fixed effect, which we do with model="factor_full", giving one coefficient for each factor level. * We need to be careful about overparameterisation when using factors. Unlike regression models like ‘lm()’, ‘glm()’ or ‘gam()’, ‘lgcp()’, inlabru does not automatically remove the first level and absorb it into an intercept. Instead, we can either use model="factor_full" without an intercept, or model="factor_contrast", which does remove the first level.

comp1alt <- geometry ~ vegetation(gcov$vegetation, model = "factor_contrast") +
  Intercept(1)

Fit the model as usual:

fit1 <- lgcp(comp1, nests, samplers = boundary, domain = list(geometry = mesh))

Predict the intensity, and plot the median intensity surface. (In older versions, predicting takes some time because we did not have vegetation values outside the mesh so ‘inlabru’ needed to predict these first. Since v2.0.0, the vegetation has been pre-extended.)

The predict function of inlabru takes into its data argument an sf object or other object supported by the predictor evaluation code (for non-geographical data, typically a data.frame). We can use the inlabru function pixels to generate an sf object with points only within the boundary, using its mask argument, as shown below.

pred.df <- fm_pixels(mesh, mask = boundary)
int1 <- predict(fit1, pred.df, ~ exp(vegetation))

# gg() with sf points and geom = "tile" plots a raster
ggplot() +
  gg(int1, geom = "tile") +
  gg(boundary, alpha = 0, lwd = 2) +
  gg(nests, color = "DarkGreen")

Not surprisingly, given that most nests are in Primary vegetation, the high density is in this vegetation. But there are substantial patches of predicted high density that have no nests, and some areas of predicted low density that have nests. What about the estimated abundance (there are really 647 nests there):

ips <- fm_int(mesh, boundary)
Lambda1 <- predict(fit1, ips, ~ sum(weight * exp(vegetation)))
Lambda1
#>       mean       sd   q0.025     q0.5   q0.975   median sd.mc_std_err
#> 1 645.0679 23.81026 606.6531 644.1477 693.7584 644.1477      1.504613
#>   mean.mc_std_err
#> 1        2.681948

A model with vegetation type and a SPDE type smoother

Lets try to explain the pattern in nest distribution that is not captured by the vegetation covariate, using an SPDE:

pcmatern <- inla.spde2.pcmatern(mesh,
  prior.sigma = c(0.1, 0.01),
  prior.range = c(0.1, 0.01)
)

comp2 <- geometry ~
  -1 +
  vegetation(gcov$vegetation, model = "factor_full") +
  mySmooth(geometry, model = pcmatern)
fit2 <- lgcp(comp2, nests, samplers = boundary, domain = list(geometry = mesh))

And plot the posterior median intensity surface

int2 <- predict(fit2, pred.df, ~ exp(mySmooth + vegetation), n.samples = 1000)

ggplot() +
  gg(int2, aes(fill = q0.5), geom = "tile") +
  gg(boundary, alpha = 0, lwd = 2) +
  gg(nests)

… and the expected integrated intensity (mean of abundance)

Lambda2 <- predict(
  fit2,
  fm_int(mesh, boundary),
  ~ sum(weight * exp(mySmooth + vegetation))
)
Lambda2
#>       mean       sd   q0.025    q0.5   q0.975  median sd.mc_std_err
#> 1 677.2408 29.01013 625.2891 676.731 742.2917 676.731      2.017831
#>   mean.mc_std_err
#> 1        3.304579

Look at the contributions to the linear predictor from the SPDE and from vegetation:

lp2 <- predict(fit2, pred.df, ~ list(
  smooth_veg = mySmooth + vegetation,
  smooth = mySmooth,
  veg = vegetation
))

The function scale_fill_gradientn sets the scale for the plot legend. Here we set it to span the range of the three linear predictor components being plotted (medians are plotted by default).

lprange <- range(lp2$smooth_veg$median, lp2$smooth$median, lp2$veg$median)
csc <- scale_fill_gradientn(colours = brewer.pal(9, "YlOrRd"), limits = lprange)

plot.lp2 <- ggplot() +
  gg(lp2$smooth_veg, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("mySmooth + vegetation")

plot.lp2.spde <- ggplot() +
  gg(lp2$smooth, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("mySmooth")

plot.lp2.veg <- ggplot() +
  gg(lp2$veg, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("vegetation")

multiplot(plot.lp2, plot.lp2.spde, plot.lp2.veg, cols = 3)

A model with SPDE only

Do we need vegetation at all? Fit a model with only an SPDE + Intercept, and choose between models on the basis of DIC, using deltaIC().

comp3 <- geometry ~ mySmooth(geometry, model = pcmatern) + Intercept(1)
fit3 <- lgcp(comp3,
  data = nests,
  samplers = boundary,
  domain = list(geometry = mesh)
)
int3 <- predict(fit3, pred.df, ~ exp(mySmooth + Intercept))

ggplot() +
  gg(int3, geom = "tile") +
  gg(boundary, alpha = 0) +
  gg(nests)

Lambda3 <- predict(
  fit3,
  fm_int(mesh, boundary),
  ~ sum(weight * exp(mySmooth + Intercept))
)
Lambda3
#>       mean       sd   q0.025     q0.5   q0.975   median sd.mc_std_err
#> 1 674.8124 29.99043 623.7298 674.4437 728.0359 674.4437      2.200161
#>   mean.mc_std_err
#> 1        3.439075
knitr::kable(deltaIC(fit1, fit2, fit3, criterion = c("DIC")))
Model DIC Delta.DIC
fit1 -562.5418 0.000
fit3 525.1865 1087.728
fit2 619.0162 1181.558

NOTE: the behaviour of DIC is currently a bit unclear, and is being investigated. WAIC is related to leave-one-out cross-validation, and is not appropriate to use with the current current LGCP likelihood implementation.

Classic mode:

Model DIC Delta.DIC
fit2 2224.131 0.00000
fit3 2274.306 50.17504
fit1 3124.784 900.65339

Experimental mode:

Model DIC Delta.DIC
fit1 -563.3583 0.000
fit3 509.4010 1072.759
fit2 597.6459 1161.004

CV and SPDE parameters for Model 2

We are going with Model fit2. Lets look at the spatial distribution of the coefficient of variation

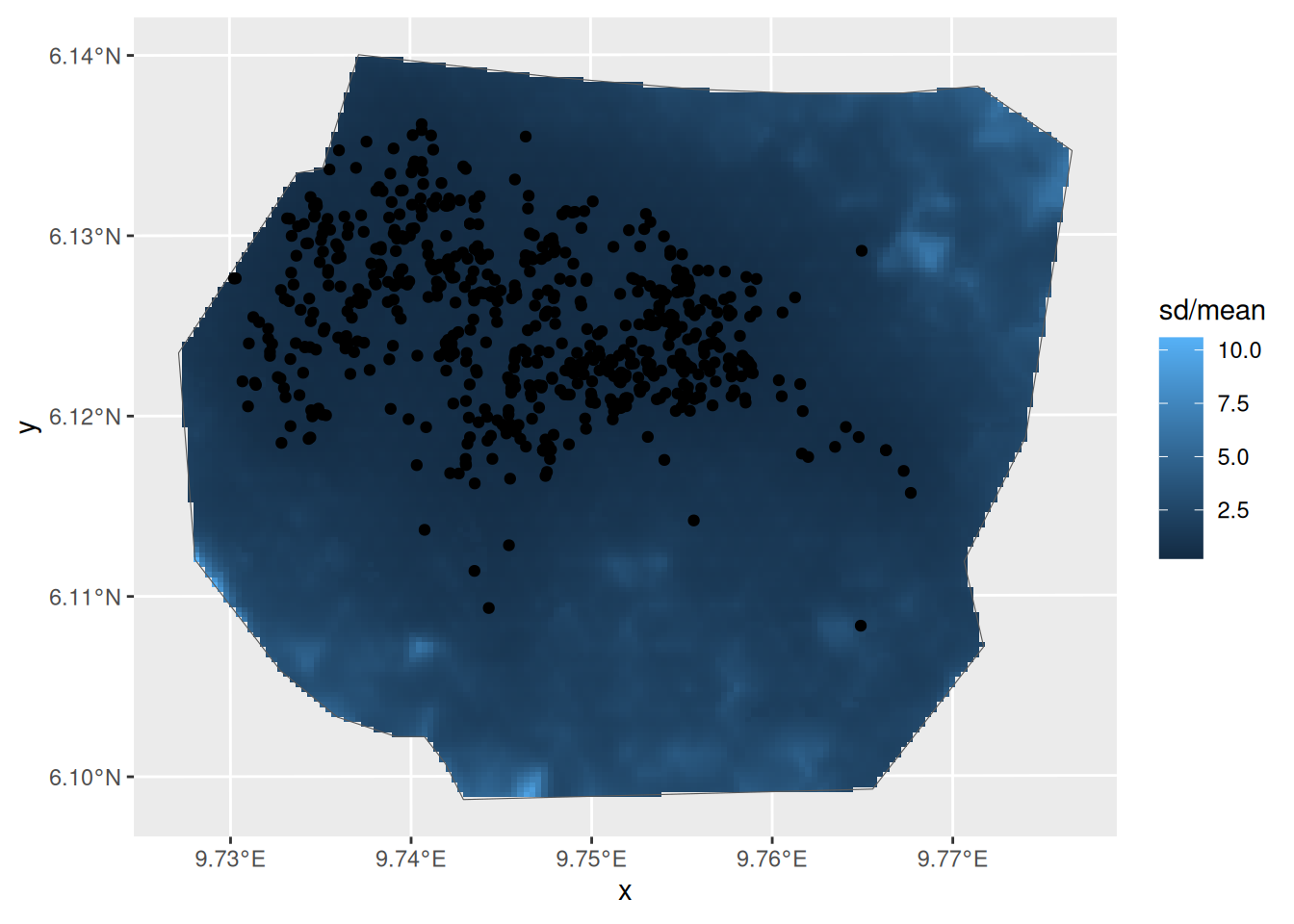

ggplot() +
  gg(int2, aes(fill = sd / mean), geom = "tile") +
  gg(boundary, alpha = 0) +
  gg(nests)

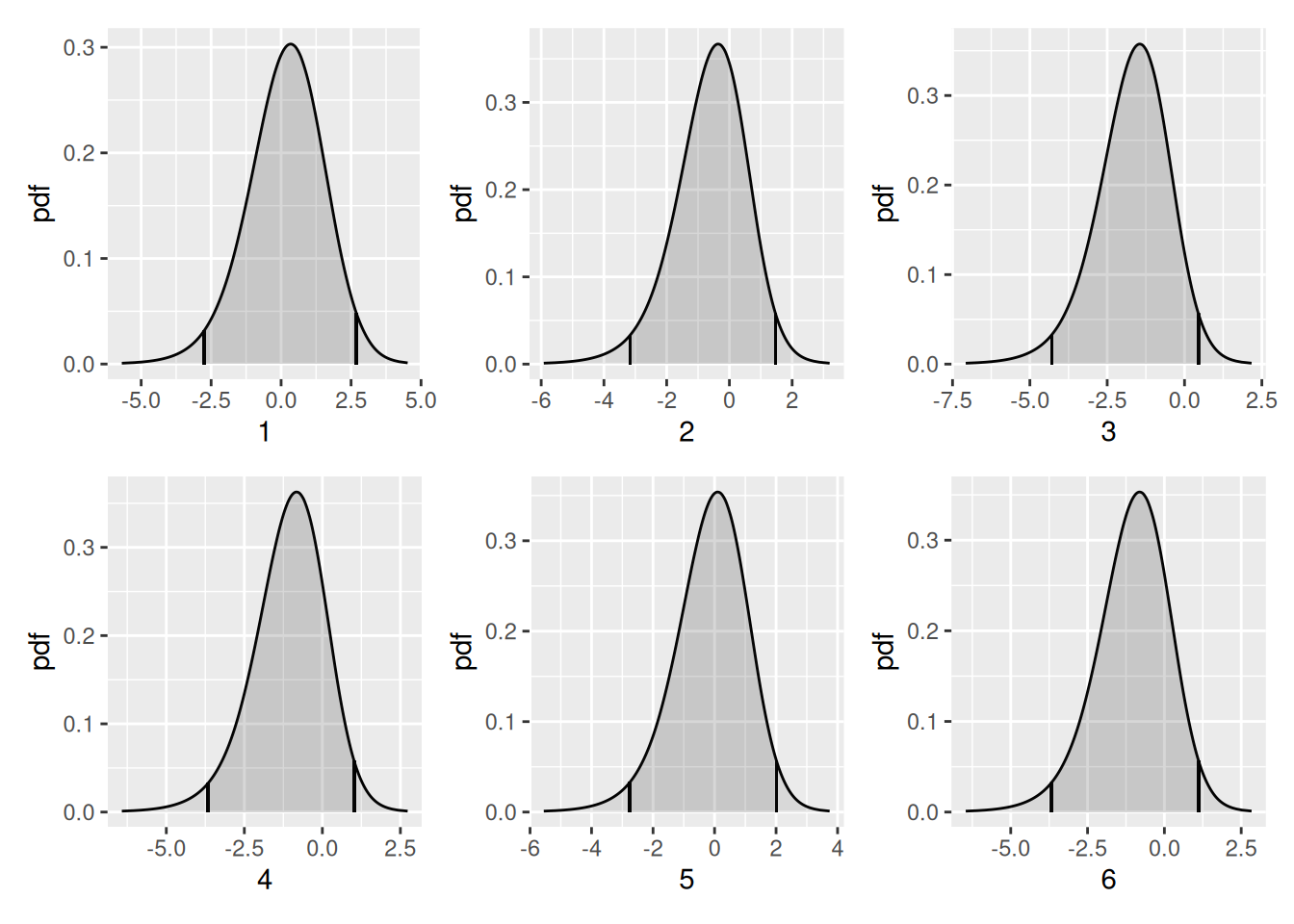

Plot the vegetation “fixed effect” posteriors. First get their names - from $marginals.random$vegetation of the fitted object, which contains the fixed effect marginal distribution data

flist <- vector("list", NROW(fit2$summary.random$vegetation))
for (i in seq_along(flist)) flist[[i]] <- plot(fit2, "vegetation", index = i)
multiplot(plotlist = flist, cols = 3)

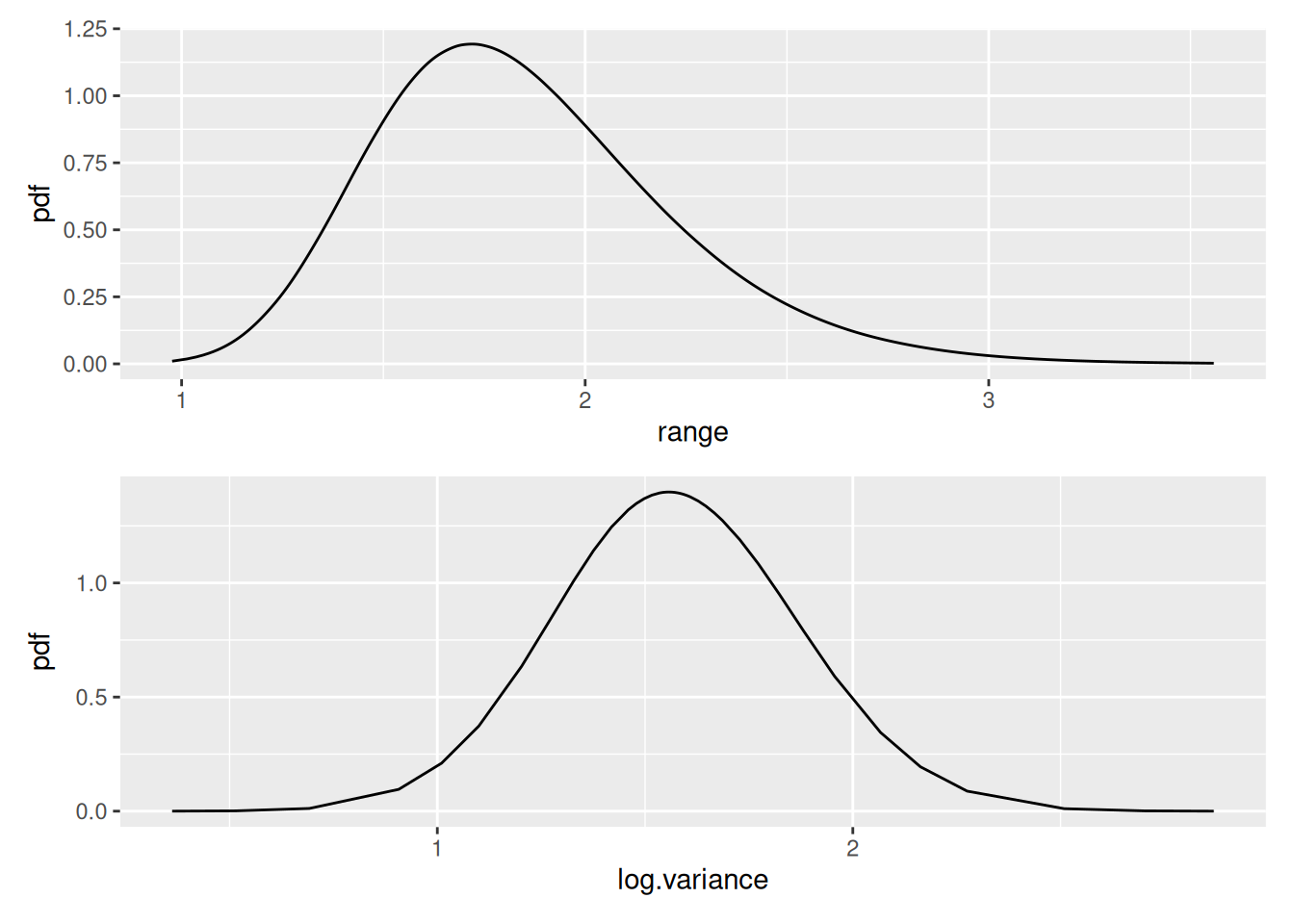

Use spde.posterior( ) to obtain and then plot the SPDE parameter posteriors and the Matern correlation and covariance functions for this model.

spde.range <- spde.posterior(fit2, "mySmooth", what = "range")
spde.logvar <- spde.posterior(fit2, "mySmooth", what = "log.variance")
range.plot <- plot(spde.range)
var.plot <- plot(spde.logvar)

multiplot(range.plot, var.plot)

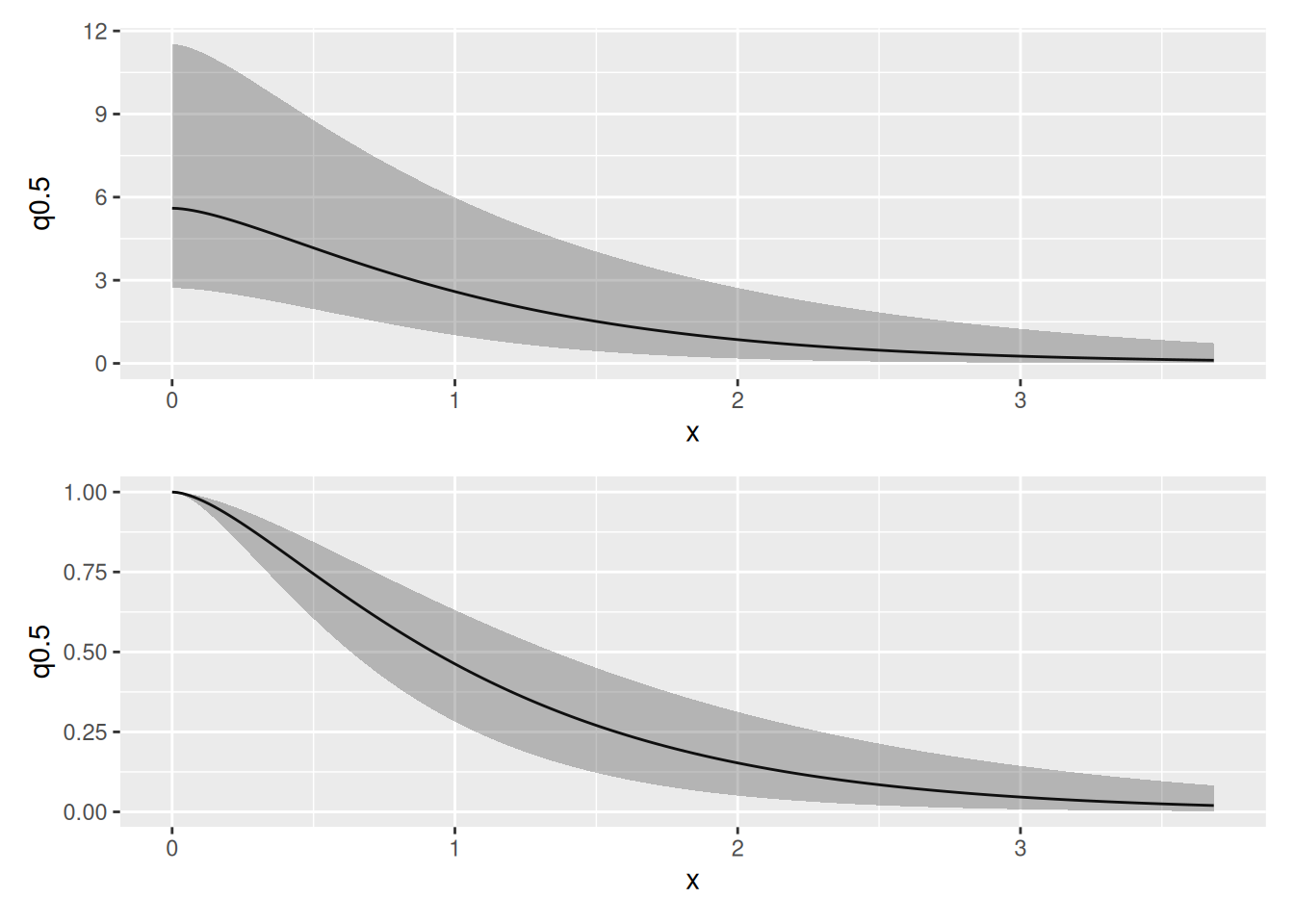

corplot <- plot(spde.posterior(fit2, "mySmooth", what = "matern.correlation"))
covplot <- plot(spde.posterior(fit2, "mySmooth", what = "matern.covariance"))
multiplot(covplot, corplot)

Continuous covariates

Now lets try a model with elevation as a (continuous) explanatory variable. (First centre elevations for more stable fitting.)

elev <- gcov$elevation
elev <- elev - mean(terra::values(elev), na.rm = TRUE)

ggplot() +
  gg(elev, geom = "tile") +
  gg(boundary, alpha = 0)

The elevation variable here is of class ‘SpatRaster’, that can be handled in the same way as the vegetation covariate, with automatic evaluation via an eval_spatial() method. However, since in some cases data may be stored differently, other methods are needed to access the stored values, or there’s some post-processing to be done. In such cases, we can define a function that knows how to evaluate the covariate at arbitrary points in the survey region, and call that function in the component definition. The method eval_spatial() is the method that handles this automatically, and supports terra SpatRaster and sf geometry points objects, and mismatching coordinate systems as well. In the following evaluator example function, we only add infilling of missing values as a post-processing step.

# Note: this method is usually not needed; the automatic invocation of
# `eval_spatial()` method by the component input evaluator is usually
# sufficient.
f.elev <- function(where) {
  # Extract the values
  v <- eval_spatial(elev, where, layer = "elevation")
  # Fill in missing values; this example would work for
  # SpatialPixelsDataFrame data
  # if (any(is.na(v))) {
  #   v <- bru_fill_missing(elev, where, v)
  # }
  return(v)
}

For brevity we are not going to consider models with elevation only, with elevation and a SPDE, and with SPDE only. We will just fit one with elevation and SPDE. We create our model to pass to lgcp thus:

matern <- inla.spde2.pcmatern(mesh,
  prior.sigma = c(0.1, 0.01),
  prior.range = c(0.1, 0.01)
)

ecomp <- geometry ~ elev(f.elev(.data.), model = "linear") +
  mySmooth(geometry, model = matern) + Intercept(1)

Note how the elevation effect is defined. We could alternatively use the terra grid object directly (causing inlabru to automatically call eval_spatial()), like in the vegetation case: we specified it like

elev(elev, model = "factor_full")

whereas with the special function method we specify the covariate like this:

elev(f.elev(.data.), model = "linear")

Most applications can use the automatic method, and the special function method is included only as an example of how to handle more complex cases.

We also now include an intercept term in the model.

The model is fitted in the usual way:

efit <- lgcp(ecomp, nests, samplers = boundary, domain = list(geometry = mesh))

Summary and model selection

summary(efit)
#> inlabru version: 2.11.1.9012
#> INLA version: 24.10.02
#> Components:
#> elev: main = linear(f.elev(.data.)), group = exchangeable(1L), replicate = iid(1L), NULL
#> mySmooth: main = spde(geometry), group = exchangeable(1L), replicate = iid(1L), NULL
#> Intercept: main = linear(1), group = exchangeable(1L), replicate = iid(1L), NULL
#> Likelihoods:
#>   Family: 'cp'
#>     Data class: 'sf', 'data.frame'
#>     Response class: 'numeric'
#>     Predictor: geometry ~ .
#>     Used components: effects[elev, mySmooth, Intercept], latent[]
#> Time used:
#>     Pre = 0.368, Running = 4.72, Post = 0.351, Total = 5.44
#> Fixed effects:
#>            mean    sd 0.025quant 0.5quant 0.975quant  mode kld
#> elev      0.004 0.001      0.002    0.004      0.006 0.004   0
#> Intercept 1.125 0.478      0.151    1.136      2.037 1.136   0
#>
#> Random effects:
#>   Name     Model
#>     mySmooth SPDE2 model
#>
#> Model hyperparameters:
#>                    mean    sd 0.025quant 0.5quant 0.975quant  mode
#> Range for mySmooth 1.76 0.217      1.376     1.75       2.23 1.714
#> Stdev for mySmooth 1.00 0.085      0.848     1.00       1.18 0.995
#>
#> Deviance Information Criterion (DIC) ...............: 521.26
#> Deviance Information Criterion (DIC, saturated) ....: 520.43
#> Effective number of parameters .....................: -825.43
#>
#> Watanabe-Akaike information criterion (WAIC) ...: 1604.04
#> Effective number of parameters .................: 153.51
#>
#> Marginal log-Likelihood:  -1254.95
#>  is computed
#> Posterior summaries for the linear predictor and the fitted values are computed
#> (Posterior marginals needs also 'control.compute=list(return.marginals.predictor=TRUE)')
deltaIC(fit1, fit2, fit3, efit)
#>   Model       DIC Delta.DIC
#> 1  fit1 -562.5418     0.000
#> 2  efit  521.2565  1083.798
#> 3  fit3  525.1865  1087.728
#> 4  fit2  619.0162  1181.558

Predict and plot the density

e.int <- predict(efit, pred.df, ~ exp(mySmooth + elev + Intercept))
e.int.log <- predict(efit, pred.df, ~ (mySmooth + elev + Intercept))

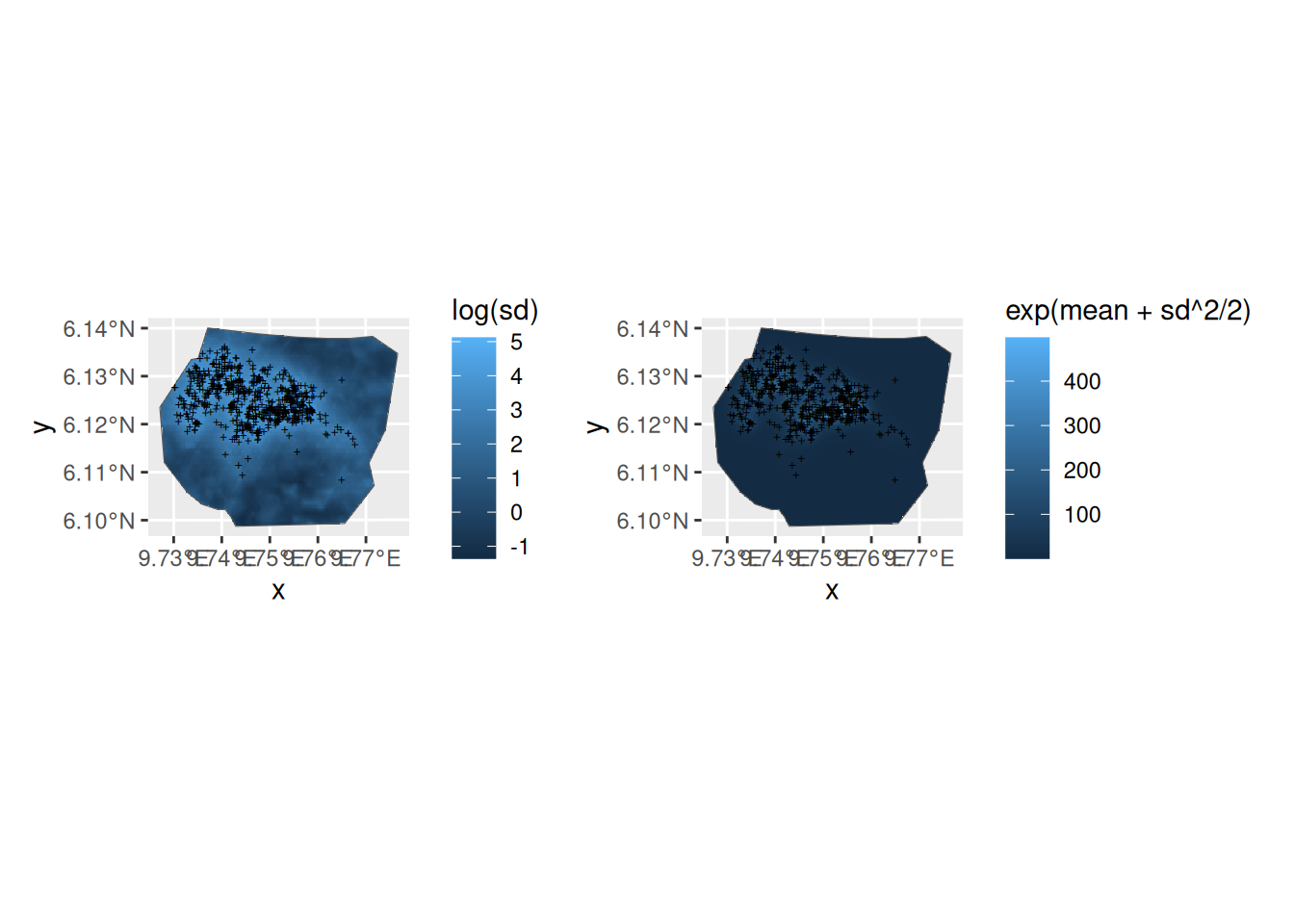

p1 <- ggplot() +
  gg(e.int, aes(fill = log(sd)), geom = "tile") +
  gg(boundary, alpha = 0) +
  gg(nests, shape = "+")
p2 <- ggplot() +
  gg(e.int.log, aes(fill = exp(mean + sd^2 / 2)), geom = "tile") +
  gg(boundary, alpha = 0) +
  gg(nests, shape = "+")
library(patchwork)
p1 | p2

Now look at the elevation and SPDE effects in space. Leave out the Intercept because it swamps the spatial effects of elevation and the SPDE in the plots and we are interested in comparing the effects of elevation and the SPDE.

First we need to predict on the linear predictor scale.

e.lp <- predict(
  efit,
  pred.df,
  ~ list(
    smooth_elev = mySmooth + elev,
    elev = elev,
    smooth = mySmooth
  )
)

The code below, which is very similar to that used for the vegetation factor variable, produces the plots we want.

lprange <- range(e.lp$smooth_elev$mean, e.lp$elev$mean, e.lp$smooth$mean)

library(RColorBrewer)
csc <- scale_fill_gradientn(colours = brewer.pal(9, "YlOrRd"), limits = lprange)

plot.e.lp <- ggplot() +
  gg(e.lp$smooth_elev, mask = boundary, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("SPDE + elevation")

plot.e.lp.spde <- ggplot() +
  gg(e.lp$smooth, mask = boundary, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("SPDE")

plot.e.lp.elev <- ggplot() +
  gg(e.lp$elev, mask = boundary, geom = "tile") +
  csc +
  theme(legend.position = "bottom") +
  gg(boundary, alpha = 0) +
  ggtitle("elevation")

multiplot(plot.e.lp,
  plot.e.lp.spde,
  plot.e.lp.elev,
  cols = 3
)

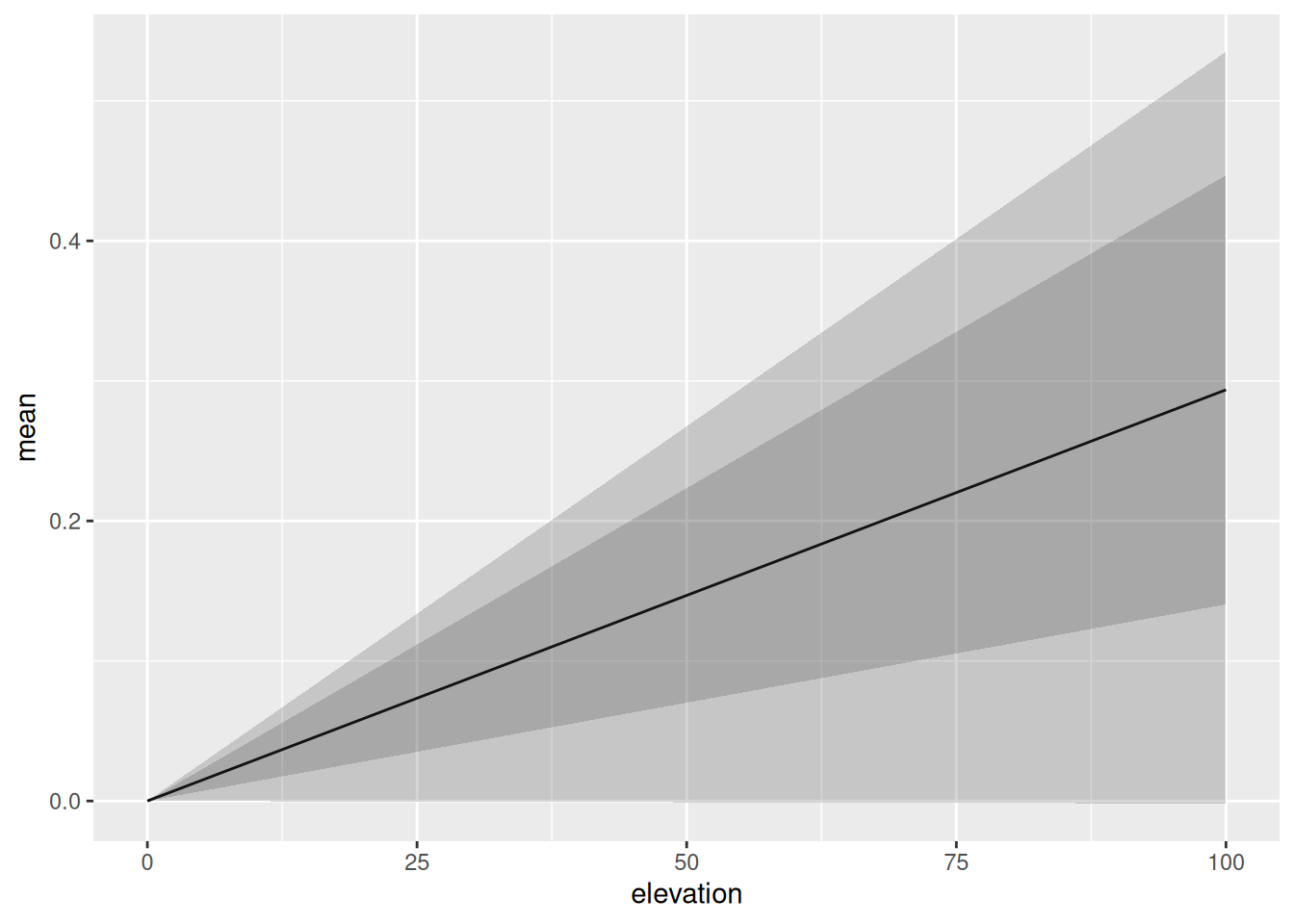

You might also want to look at the posteriors of the fixed effects and of the SPDE. Adapt the code used for the vegetation factor to do this.

LambdaE <- predict(
  efit,
  fm_int(mesh, boundary),
  ~ sum(weight * exp(Intercept + elev + mySmooth))
)
LambdaE
#>      mean       sd   q0.025     q0.5   q0.975   median sd.mc_std_err
#> 1 675.978 23.87528 635.5041 676.1119 717.9656 676.1119       1.86736
#>   mean.mc_std_err
#> 1           2.761
flist <- vector("list", NROW(efit$summary.fixed))
for (i in seq_along(flist)) {
  flist[[i]] <- plot(efit, rownames(efit$summary.fixed)[i])
}
multiplot(plotlist = flist, cols = 2)

Plot the SPDE parameter posteriors and the Matern correlation and covariance functions for this model.

spde.range <- spde.posterior(efit, "mySmooth", what = "range")
spde.logvar <- spde.posterior(efit, "mySmooth", what = "log.variance")
range.plot <- plot(spde.range)
var.plot <- plot(spde.logvar)

multiplot(range.plot, var.plot)

corplot <- plot(spde.posterior(efit, "mySmooth", what = "matern.correlation"))
covplot <- plot(spde.posterior(efit, "mySmooth", what = "matern.covariance"))
multiplot(covplot, corplot)

Also estimate abundance. The data.frame in the second call leads to inclusion of N in the prediction object, for easier plotting.

Lambda <- predict(
  efit, fm_int(mesh, boundary),
  ~ sum(weight * exp(mySmooth + elev + Intercept))
)
Lambda
#>       mean       sd   q0.025     q0.5   q0.975   median sd.mc_std_err
#> 1 673.1385 29.85687 628.3729 669.0842 736.9912 669.0842      2.151898
#>   mean.mc_std_err
#> 1        3.416066

Nest.e <- predict(
  efit,
  fm_int(mesh, boundary),
  ~ data.frame(
    N = 200:1000,
    density = dpois(200:1000,
      lambda = sum(weight * exp(mySmooth + elev + Intercept))
    )
  ),
  n.samples = 2000
)

Plot in the same way as in previous practicals

Nest.e$plugin_estimate <- dpois(Nest.e$N, lambda = Lambda$median)
ggplot(data = Nest.e) +
  geom_line(aes(x = N, y = mean, colour = "Posterior")) +
  geom_line(aes(x = N, y = plugin_estimate, colour = "Plugin"))

Non-spatial evaluation of the covariate effect

The previous examples of posterior prediction focused on spatial prediction. From inlabru version 2.2.8, a feature is available for overriding the component input value specification from the component definition. Each model component can be evaluated directly, for arbitrary values by functions named by adding the suffix _eval to the end of the component name in the predictor expression, and disabling normal component evaluation for all components with include = character(0) (since we’re both bypassing the normal input to the elev component, and not supplying data for the other components). From version 2.8.0, inlabru attempts to automatically detect which model components are used in the expression, and the include argument can be left out entirely.

Since the elevation effect in this model is linear, the resulting plot isn’t very interesting, but the same method can be applied to non-linear effects as well, and combined into general R expressions.

elev.pred <- predict(
  efit,
  data.frame(elevation = seq(0, 100, length.out = 1000)),
  formula = ~ elev_eval(elevation)
  # include = character(0) # Not needed from version 2.8.0
)

ggplot(elev.pred) +
  geom_line(aes(elevation, mean)) +
  geom_ribbon(
    aes(elevation,
      ymin = q0.025,
      ymax = q0.975
    ),
    alpha = 0.2
  ) +
  geom_ribbon(
    aes(elevation,
      ymin = mean - 1 * sd,
      ymax = mean + 1 * sd
    ),
    alpha = 0.2
  )

A 1D Example

Try fitting a 1-dimensional model to the point data in the inlabru dataset Poisson2_1D. This comes with a covariate function called cov2_1D. Try to reproduce the plot below (used in lectures) showing the effects of the Intercept + z and the SPDE. (You may find it helpful to build on the model you fitted in the previous practical, adding the covariate to the model specification.)

data(Poisson2_1D)
ss <- seq(0, 55, length = 200)
z <- cov2_1D(ss)
x <- seq(1, 55, length = 100)
mesh <- fm_mesh_1d(x, degree = 1)

comp <- x ~
  beta_z(cov2_1D(x), model = "linear") +
  spde1D(x, model = inla.spde2.matern(mesh)) +
  Intercept(1)

fitcov1D <- lgcp(comp, pts2, domain = list(x = mesh))
pr.df <- data.frame(x = x)
prcov1D <- predict(
  fitcov1D,
  pr.df,
  ~ list(
    total = exp(beta_z + spde1D + Intercept),
    fx = exp(beta_z + Intercept),
    spde = exp(spde1D)
  )
)

ggplot() +
  gg(prcov1D$total, color = "red") +
  geom_line(aes(x = prcov1D$spde$x, y = prcov1D$spde$median),
    col = "blue", lwd = 1.25
  ) +
  geom_line(aes(x = prcov1D$fx$x, y = prcov1D$fx$median),
    col = "green", lwd = 1.25
  ) +
  geom_point(data = pts2, aes(x = x), y = 0.2, shape = "|", cex = 4) +
  xlab(expression(bold(s))) +
  ylab(expression(hat(lambda)(bold(s)) ~ ~"and its components")) +
  annotate(geom = "text", x = 40, y = 6, label = "Intensity", color = "red") +
  annotate(
    geom = "text", x = 40, y = 5.5, label = "z-effect",
    color = "green"
  ) +
  annotate(geom = "text", x = 40, y = 5, label = "SPDE", color = "blue")
