Construct the intersection mesh of a mesh and a polygon

Usage

fm_mesh_intersection(mesh, poly)

Arguments

mesh: fm_mesh_2d object to be intersected
poly: fm_segm object with a closed polygon to intersect with the mesh, or a polygon object that can be converted with fm_as_segm()

Value

An fm_mesh_2d object

Author

Finn Lindgren Finn.Lindgren@gmail.com

Examples

segm <- fm_segm(
  rbind(c(-4, -4), c(4, -3), c(0, 4)),
  is.bnd = TRUE
)
(m <- fm_mesh_intersection(fmexample$mesh, segm))
#> fm_mesh_2d object:
#>   Manifold:	R2
#>   V / E / T:	251 / 665 / 415
#>   Euler char.:	1
#>   Constraints:	Boundary: 85 boundary edges (1 group: 0), Interior: 0 edges
#>   Bounding box: (-3.378964, 3.623639) x (-3.691805, 4.000000)
#>   Basis d.o.f.:	251

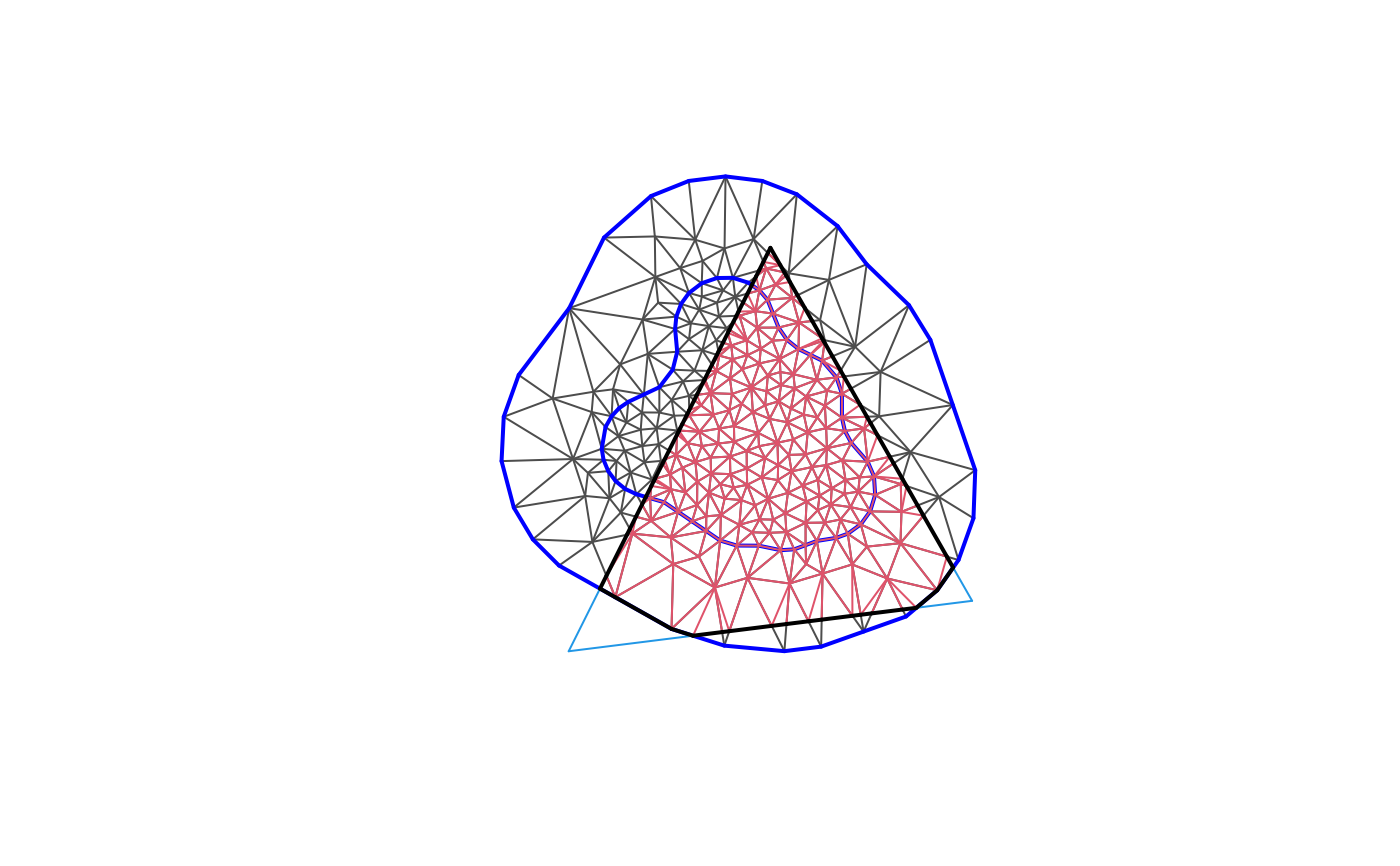

plot(fmexample$mesh)
lines(segm, col = 4)
plot(m, edge.color = 2, add = TRUE)


# \donttest{
# Non-overlapping addition
segm2 <- fm_segm(c(
  segm,
  fm_segm(
    rbind(c(-4, 0), c(-3, 0), c(-2, 2)),
    is.bnd = TRUE
  )
))
(m2 <- fm_mesh_intersection(fm_subdivide(fmexample$mesh, 2), segm2))
#> fm_mesh_2d object:
#>   Manifold:	R2
#>   V / E / T:	1920 / 5398 / 3480
#>   Euler char.:	2
#>   Constraints:	Boundary: 356 boundary edges (1 group: 0), Interior: 0 edges
#>   Bounding box: (-4.000000, 3.623639) x (-3.691805, 4.000000)
#>   Basis d.o.f.:	1920

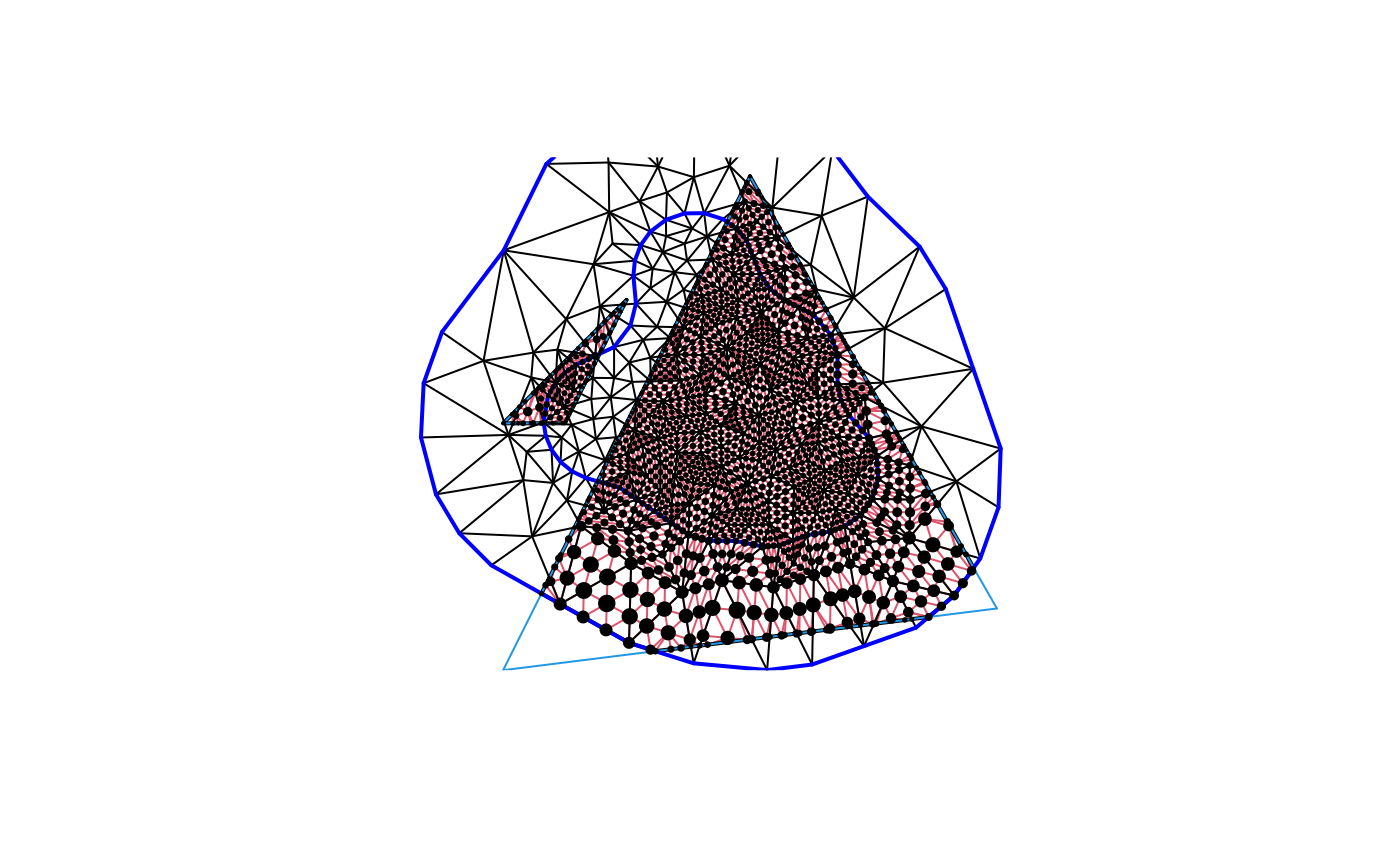

m2_int <- fm_int(m2)
plot(m2, edge.color = 2)
lines(segm2, col = 4)
plot(fmexample$mesh, edge.color = 1, add = TRUE)
plot(m2_int$geometry, pch = 20, cex = sqrt(m2_int$weight) * 4, add = TRUE)

# }

# \donttest{
# Add a hole and restrict to inner part of the original mesh
# To avoid issues with intersecting boundary segments, compute
# two separate intersection calculations in sequence.
# To allow this to be done as a single step, would need to first
# cross-intersect the boundary segments.
inner_bnd <- fm_segm(fmexample$mesh, boundary = FALSE)
fm_is_bnd(inner_bnd) <- TRUE
segm3 <- fm_segm(c(
  segm2,
  fm_segm(
    rbind(c(-1.5, 0), c(1, -0.5), c(0, -1.5)),
    is.bnd = TRUE
  )
))
(m3 <- fm_mesh_intersection(
  fm_mesh_intersection(
    fm_subdivide(fmexample$mesh, 2),
    inner_bnd
  ),
  segm3
))
#> fm_mesh_2d object:
#>   Manifold:	R2
#>   V / E / T:	1388 / 3788 / 2401
#>   Euler char.:	1
#>   Constraints:	Boundary: 373 boundary edges (1 group: 0), Interior: 0 edges
#>   Bounding box: (-3.344418, 2.076846) x (-1.995602, 3.260485)
#>   Basis d.o.f.:	1388

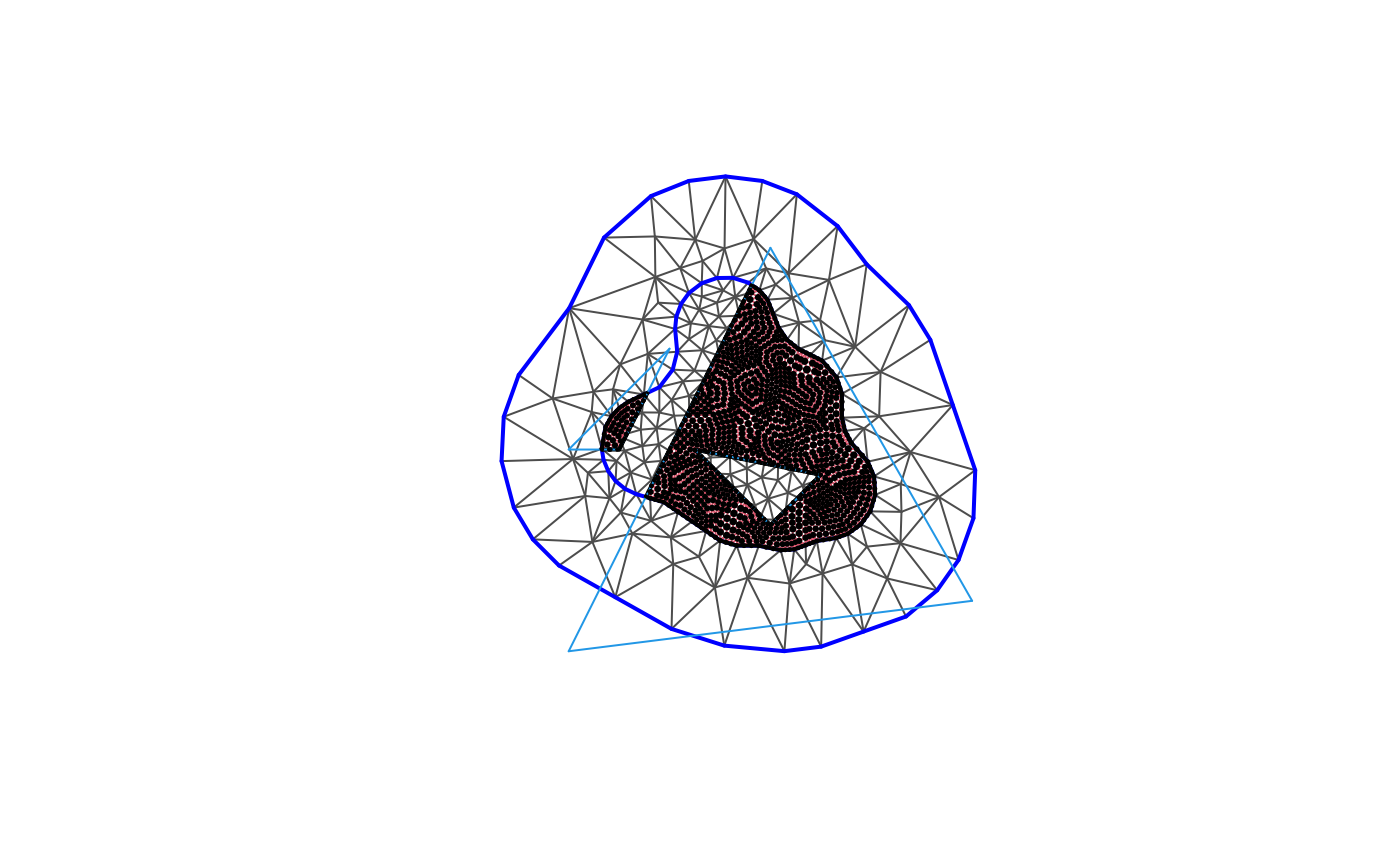

m3_int <- fm_int(m3)
plot(fmexample$mesh)
plot(m3, edge.color = 2, add = TRUE)
lines(segm3, col = 4)
plot(m3_int$geometry, pch = 20, cex = sqrt(m3_int$weight) * 4, add = TRUE)

# }

# \donttest{
# Spherical mesh
(m_s2 <- fm_rcdt_2d(globe = 4))
#> fm_mesh_2d object:
#>   Manifold:	S2
#>   V / E / T:	162 / 480 / 320
#>   Euler char.:	2
#>   Constraints:	Boundary: 0 edges, Interior: 0 edges
#>   Bounding box: (-1, 1) x (-1, 1) x (-1, 1)
#>   Basis d.o.f.:	162
segm4 <- fm_segm(
  rbind(
    c(1, 0, 0.1) / sqrt(1.01),
    c(0, 1, 0),
    c(-1, -1, 1) / sqrt(3)
  ),
  is.bnd = TRUE
)
(m4 <- fm_mesh_intersection(fm_subdivide(m_s2, 1), segm4))
#> fm_mesh_2d object:
#>   Manifold:	S2
#>   V / E / T:	259 / 690 / 432
#>   Euler char.:	1
#>   Constraints:	Boundary: 84 boundary edges (1 group: 0), Interior: 0 edges
#>   Bounding box: (-0.7070939, 0.9950372) x (-0.674452, 1.000000) x (0,1)
#>   Basis d.o.f.:	259

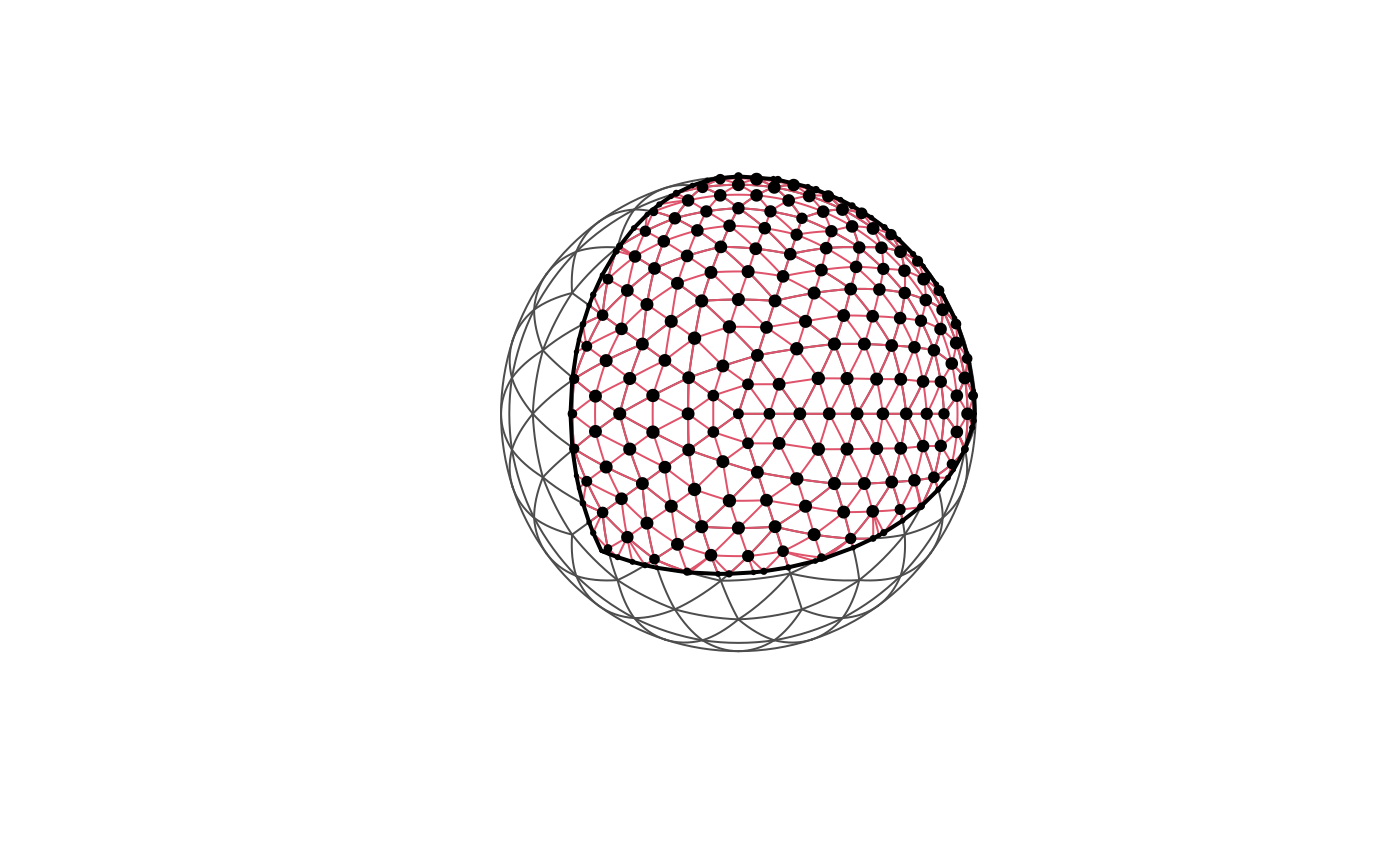

m4_int <- fm_int(m4)
plot(m_s2)
plot(m4, edge.color = 2, add = TRUE)
plot(m4_int$geometry, pch = 20, cex = sqrt(m4_int$weight) * 8, add = TRUE)

# }
